Aculux

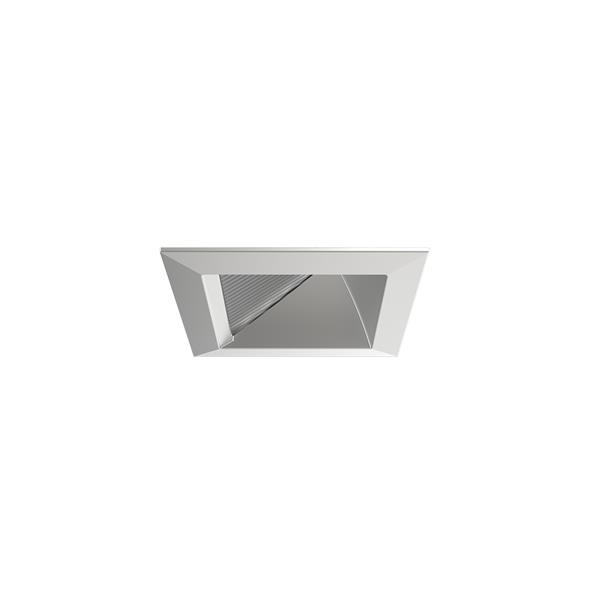

Initia 3" Square Wall Wash

3" Value Precision Recessed New Construction & Remodel
    WarmDimEnergy Star®CA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 3 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Lumens 400 LM, 800 LM, 1000 LM, 1200 LM, 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90
Product Type Downlight
Compliance Listing BAA and BABA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8, Low UGR
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 12, 16, 5, 8
Voltage Rating 120, 120-277, 277
Trim Style Single Wallwash
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series INIT3SQ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet INIT3SQ DL WW.pdf Initia Square Downlight/Wall Wash New Construction & Remodel 5/8/2023 View
    Design Select

    Need to Configurator a Design Select Product  or Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P4807.pdf INIT3 and INIT3SQ 3" New Construction Housing 5/4/2022 View
    Installation Instructions P4808.pdf INIT3 and INIT3SQ 3" Remodel Housing 5/4/2022 View
    Installation Instructions P4809.pdf INIT3 and INIT3SQ 3" Flangeless Adapter for Gypsum Ceiling Thickness .50" to 1.50" (NT3FMA) 3/11/2020 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures ACX_9976.02_Aculux Initia 3in Brochure_0120_web.pdf Aculux Initia Brochure 10/4/2024 View
