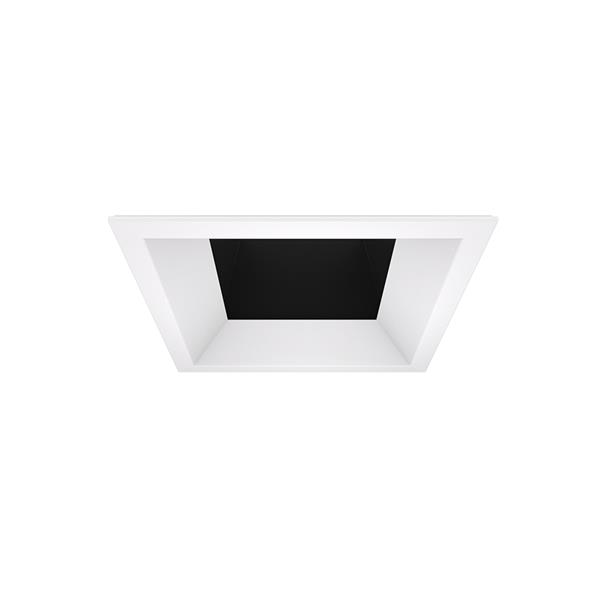

AX4SQ 4" Square Downlight

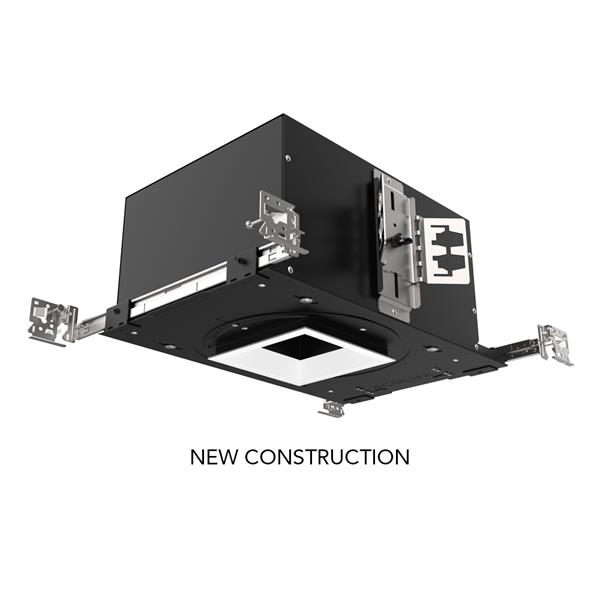

4" Precision Recessed New Construction
    WarmDimTunable WhiteEnergy Star®CA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 4 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 1700 LM, 2200 LM, 2700 LM, 3200 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA and BABA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8, Low UGR
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DALI, DMX, Forward Phase, Reverse Phase
Fixture Wattage 12, 12.9, 15.6, 17.2, 22.5, 25.1, 29.7, 33.2, 35.6, 36.2
Voltage Rating 120, 120-277, 277

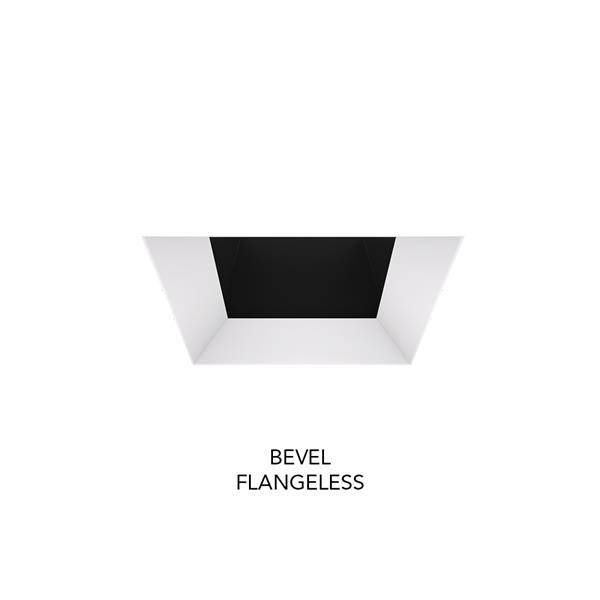

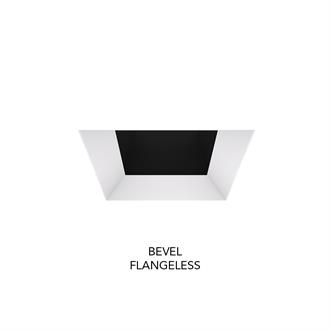

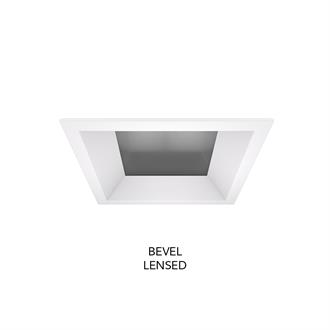

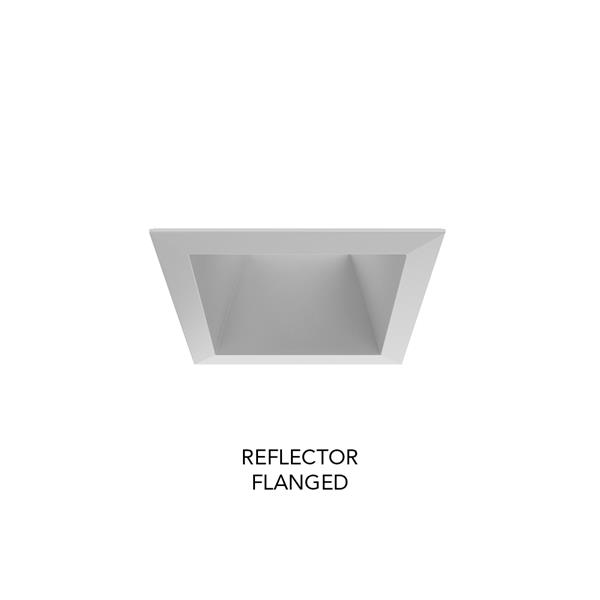

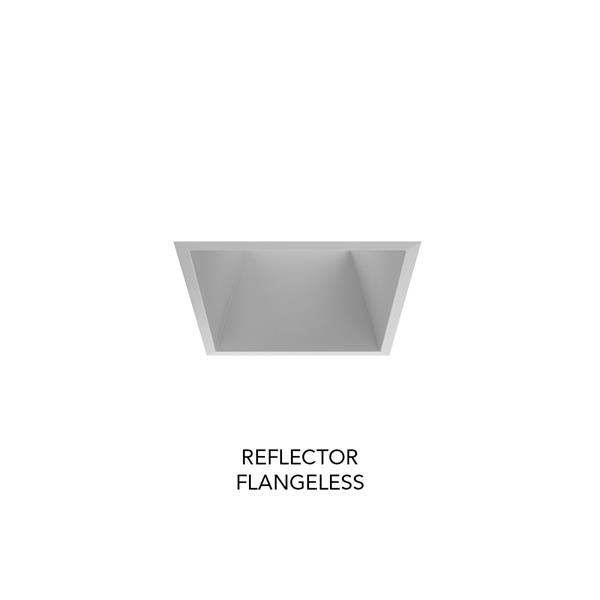

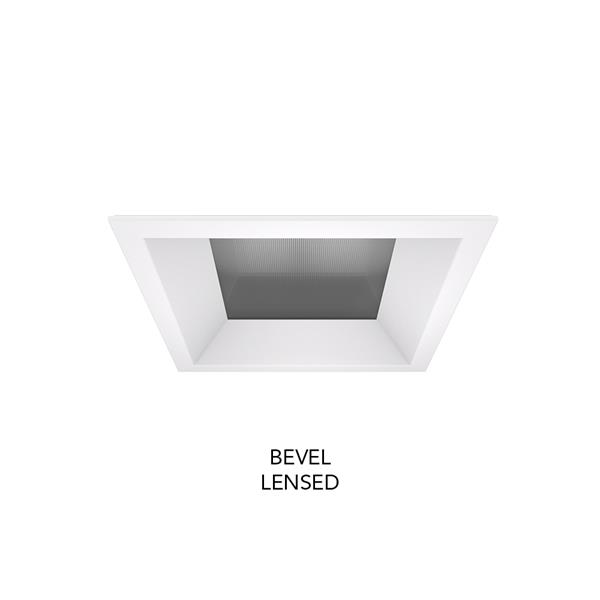

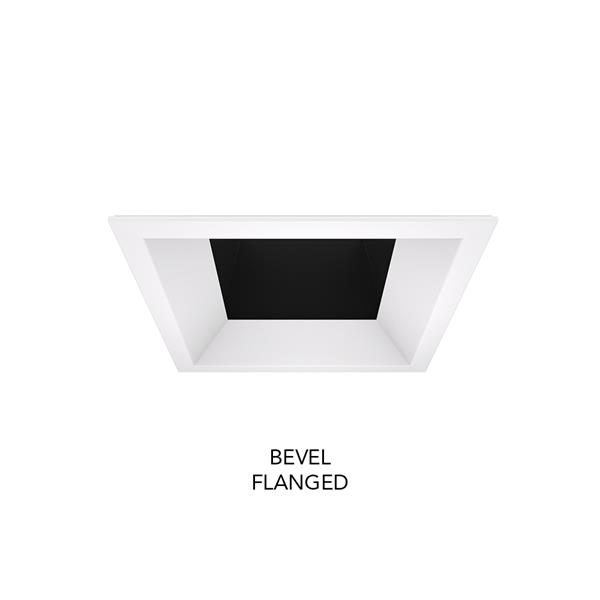

Trim Style Bevel, Lensed, Reflector
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX4SQ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Aculux-AX4SQ-Recessed-4in-Square-Downlight.pdf AX4SQ Square Downlight New Construction 12/16/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3978.pdf AX4 and AX4SQ 4" New Construction Housing 2/9/2023 View
    Installation Instructions P4486.pdf AX4SQ 4" Square Flangeless Adapter for Gypsum Ceiling Thickness .875" to 2" (FMA4SQ) 6/4/2018 View
    Installation Instructions P5515.pdf AX4 and AX4SQ Flangeless Adapter for Gypsum Ceiling Thickness less than .875" (FMA4/087,FMA4SQ/087) 6/4/2018 View

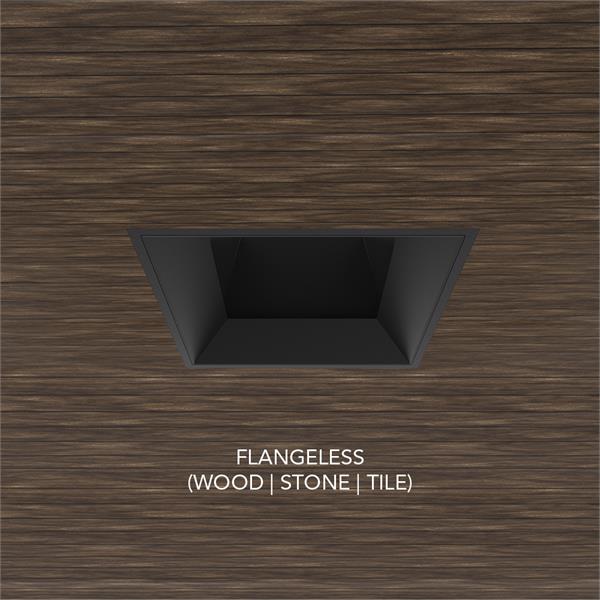

    Installation Instructions P5518.pdf AX4SQ 4" Square Flangeless Adapter for Wood, Stone & Tile Ceiling Thickness .875" to 1.625" (SFM4SQ) 6/4/2018 View
    Installation Instructions P5519.pdf AX4SQ 4" Square Ceiling Thickness Adapter .875" to 2" (CTA4/125,CTA4/163,CTA4/200) 6/5/2018 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures ACX_4inch Downlight & Wall Wash Brochure.pdf Aculux AX4 Brochure 10/4/2024 View
    Brochures ACX_AX3 & AX4 WD TW Brochure__WEB.pdf Aculux WarmDim® & Tunable White Brochure 10/4/2024 View
