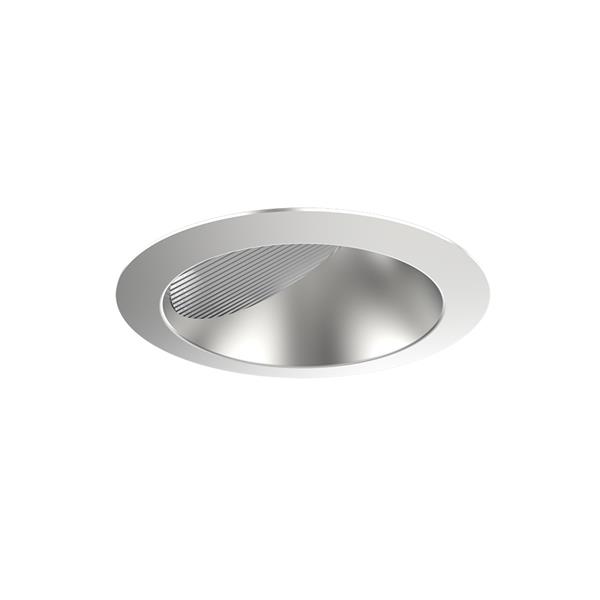

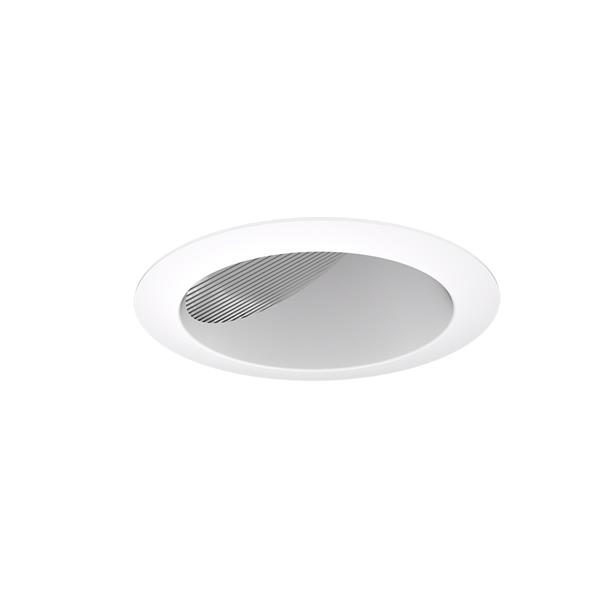

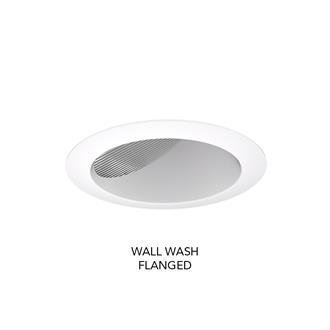

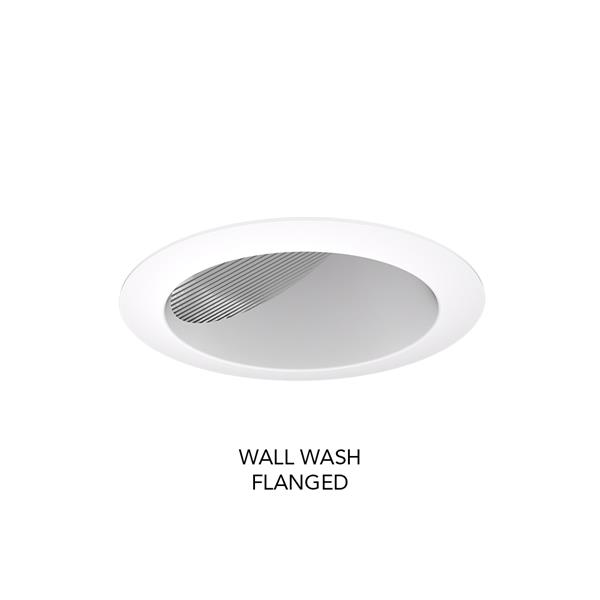

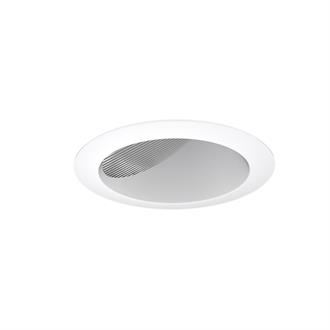

AX4 4" Round Wall Wash

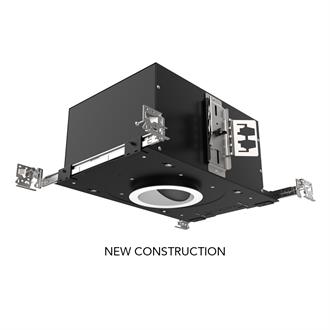

4" Precision Recessed New Construction

By Aculux

    WarmDimTunable WhiteEnergy Star®CA Title 24/JA8Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 1700 LM, 2200 LM, 2700 LM, 3200 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8, Low UGR
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DALI, DMX, Forward Phase, Reverse Phase
Fixture Wattage 12, 12.9, 15.6, 17.2, 22.5, 25.1, 29.7, 33.2, 35.6, 36.2
Voltage Rating 120, 120-277, 277

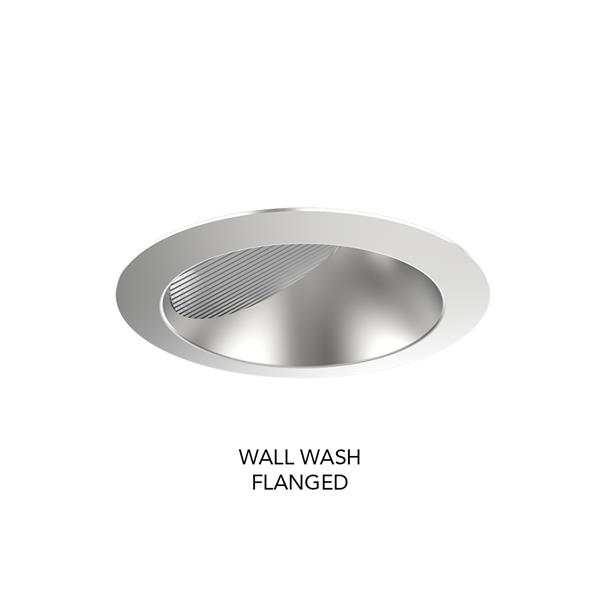

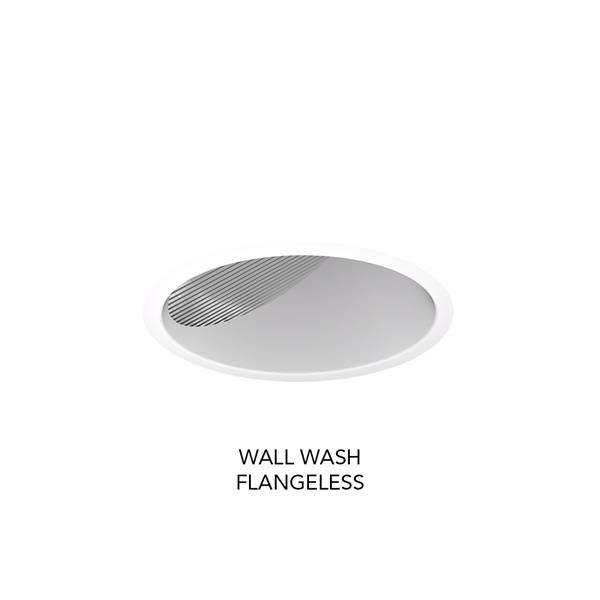

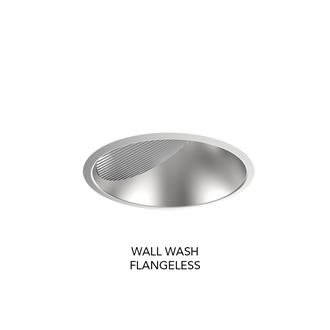

Trim Style Single Wallwash
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Aculux-AX4-Recessed-4in-Round-Wallwash.pdf AX4 Round Wall Wash New Construction 6/29/2023 View

    Design Select
    Take Me There
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3978.pdf AX4 and AX4SQ 4" New Construction Housing 2/9/2023 View
    Installation Instructions P4485.pdf AX4 4" Round Flangeless Adapter for Gypsum Ceiling Thickness .875" to 2" (FMA4/125,FMA4/163,FMA4/200 6/4/2018 View
    Installation Instructions P5515.pdf AX4 and AX4SQ Flangeless Adapter for Gypsum Ceiling Thickness less than .875" (FMA4/087,FMA4SQ/087) 6/4/2018 View
    Installation Instructions P5516.pdf AX4 4" Round Flangeless Adapter for Wood, Stone & Tile Ceiling Thickness .875" to 1.625" (SFM4) 6/4/2018 View
    Installation Instructions P5517.pdf AX4 4" Round Ceiling Thickness Adapter (CTA4/125,CTA4/163,CTA4/200) 6/5/2018 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures ACX_4inch Downlight & Wall Wash Brochure.pdf Aculux AX4 Brochure 6/7/2023 View
    Brochures ACX_AX3 & AX4 WD TW Brochure__WEB.pdf Aculux WarmDim® & Tunable White Brochure 6/1/2023 View
