AX3SQ WW New Construction Wall Wash Housing

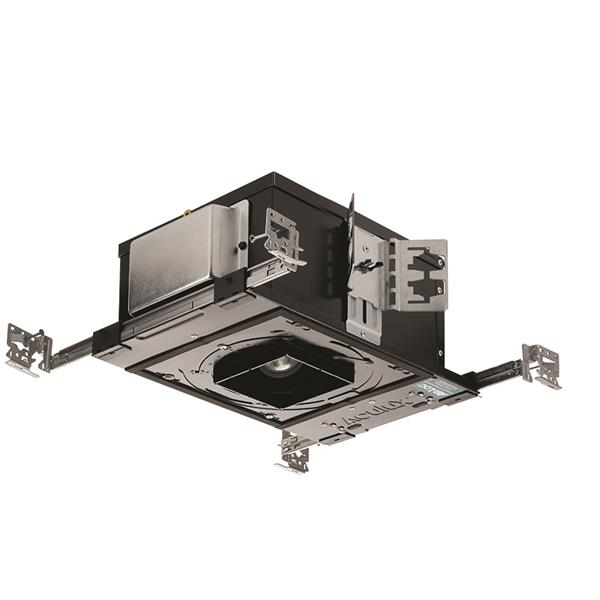

Aculux® LED 3in Square New Construction Wall Wash Housing

by Aculux

  • Design2Ship Program
Aculux® 3-inch LED precision luminaires are available in 6 lumen packages ranging from 800 - 3000 delivered lumens while consuming only 7-33 watts. These recessed luminaires are compatible with wall wash trims. The luminaire features field interchangeable optics in 10 distributions, capable of delivering up to 31,000 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
  • Suggested Replacement Products

Need this product quickly?
See the Design2ShipTM indicator on the spec sheet below or learn more about other qualifying products.

SHOW ME
  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Aculux
    Size 3 IN
    CRI 80, 90, 95
    Control Networkable Control
    CCT 2700 K, 3000 K, 3500 K, 4000 K
    Dimming Protocol Compatibility 0-10V, DMX, Forward Phase, Forward Phase 2W, Forward Phase 3W, Reverse Phase
    Environment Indoor
    Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 32.9, 33.3, 7, 7.6
    Light Source LED - Static
    Regulatory Listing cUL, UL
    Compliance Listing CA Title 24, Chicago Plenum, JA8
    Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
    Product Type Housing
    Lumen Output 800 LM, 1000 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
    Quick Ship Yes
    Series AX3SQ
    Shape Square
    Voltage Rating 120, 277, MVOLT
