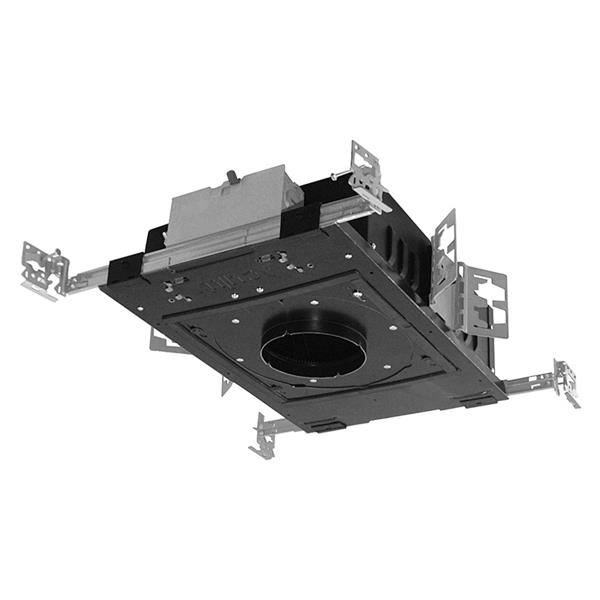

Product Image
Low Profile LED Can

AX3 LPD Low Profile housing

Aculux® LED 3in Round New Construction Low Profile Downlight Housing

By Aculux

    Energy Star®CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications
Aculux® 3" Low Profile downligting luminaire is less than 4 inches tall and is available in five lumen packages ranging from 800 to 2500 delivered lumens while consuming 7-26 watts. These luminaires are perfect for applications with limited space above the ceiling. The downlight luminaires are compatible with downlighting and wall wash trims. They feature field interchangeable optics in 10 distributions, capable of delivering up to 25,800 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
Read More
Read Less
Size 3 IN
Shape Round
Light Source Halogen, LED - Dynamic, LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 32.9, 33.3, 7, 7.6
Voltage Rating 120, 120-277, 277
Trim Style Baffle, Bevel, Cone, Hyperbolic, Lensed, Open, Pinhole
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Aculux-AX3 D-Downlighting-3in-Round-Recessed-Downlight.pdf AX3 Round Downlight New Construction Gen 4 1/20/2023 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility ACLXLED3-DIM.pdf AX3/AX3SQ and AX4/AX4SQ Series, Dimmer Compatibility 7/10/2019 View
    Installation Instructions P2886.pdf FMA3 Flangeless Adapter for Gypsum Ceiling Thickness = .875" View
    Installation Instructions P2908.pdf CTA3 Round Flanged Adapter for Ceiling Thickness 7/8" to 2" View
    Installation Instructions P3647.pdf SFM3 Round Flangeless Adapter for Wood, Stone and Tile Ceiling Thickness 1/2" to 1 5/8" View
    Installation Instructions P4482.pdf FMA3 Round Flangeless Adapter for Gypsum Ceiling Thickness 7/8" to 1 5/8" View
    Installation Instructions P4535.pdf AX3 and AX3SQ Series 3" Recessed New Construction Housing 8/25/2021 View
    Installation Instructions P6160.pdf AX3 and AX3SQ Series DMX512 and RDM Field Installable Driver View
