Aculux Product Overview
Aculux Precision Recessed LED Luminaires

AX3SQ D New Construction Downlight Housing

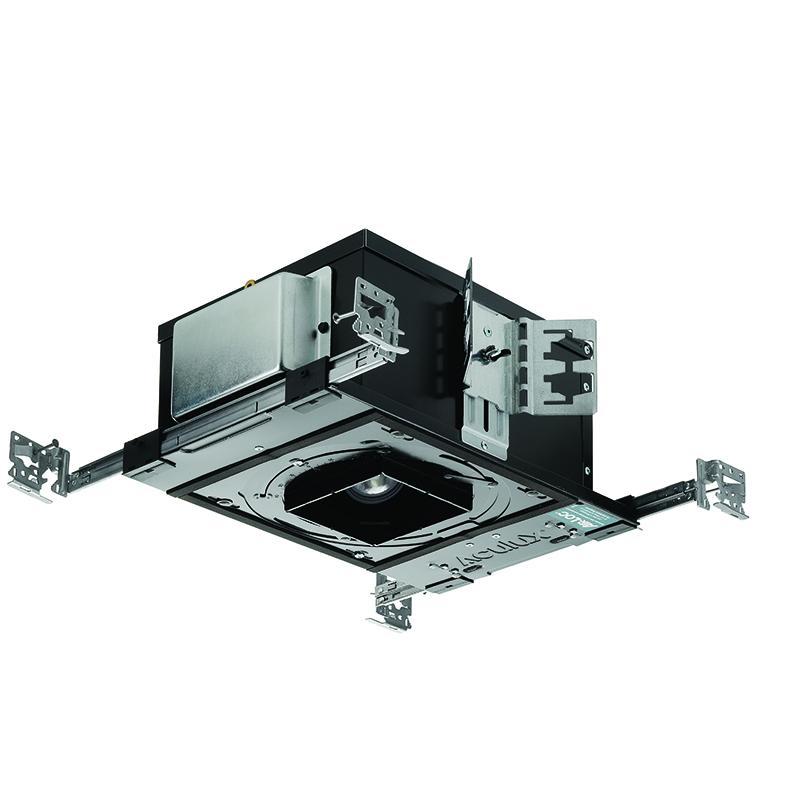

Aculux® LED 3in Square New Construction Downlight Housing

by Aculux

  • ENERGY STAR®
  • Design2Ship Program
Aculux® 3-inch LED precision luminaires are available in 6 lumen packages ranging from 800-3000 delivered lumens while consuming only 7-33 watts. These downlight luminaires are compatible with downlighting and wall wash trims. The luminaire features field interchangeable optics in 10 distributions, capable of delivering up to 31,000 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Size 3 IN
    Brand Aculux
    Color Rendering Index 80|90|95
    Control Networkable Control
    Correlated Color Temperature 2700 K|3000 K|3500 K|4000 K
    Environment Indoor|Outdoor
    Light Source LED - Static
    Listings ASTM Airtight|CA Title 24|Chicago Plenum|cUL|ENERGY STAR®|IC|Non-IC|UL Damp Location|UL Wet Location
    Lumen Output 800 LM|1200 LM|1500 LM|2000 LM|2500 LM|3000 LM
    Maximum Wattage 33
    Product Type Housing
    Quick Ship Yes
    Series AX3SQ
    Shape Square
    Voltage Rating 120|277|MVOLT
