AX3SQ A WDTW New Construction Housing

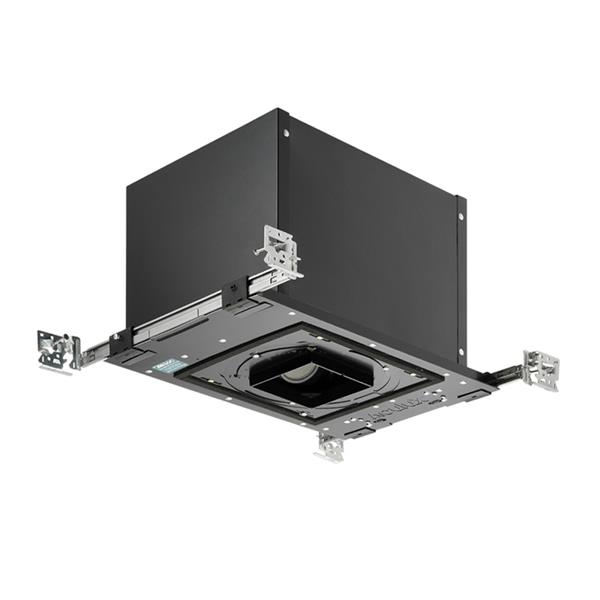

Aculux® LED 3in Square WDTW New Construction Adjustable Housing

By Aculux

    WarmDim  Tunable White  Buy America(n)
  • Overview
  • Specifications
Aculux® 3-1/4-inch LED Warm Dim & Tunable White luminaire features both technologies in a single fixture. In Warm Dim mode the luminaire warms from 3000K to less than 1800K when dimmed, exactly matching the dimming profile of halogen, and in Tunable White mode the CCT can be tuned from 4350K to 2000K. The IC-Rated luminaire uses only 20-watts from 1000 lumens, and is equipped with all of the same high-precision, high-performance features and options Aculux is renowned for Acu-Aim geared aiming, patent pending optical system and patented (US Patent 8,277,090) Tru-Line™ platform.
Read More
Read Less
Size 3 IN
Shape Square
Light Source LED - Dynamic
Lumens 1000 LM
CCT / LED Color Variable
CRI 90
Product Type Housing
Compliance Listing BAA, Chicago Plenum
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DMX
Fixture Wattage 18.9, 19.4, 20.9, 21.4
Voltage Rating 120, 277, MVOLT
Mounting Type Recessed
Series AX3SQ

Read More Read Less
