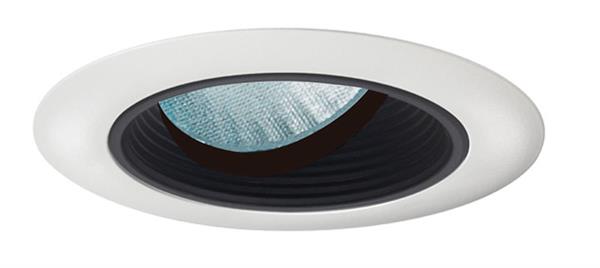

3ABAF Angle-Cut Baffle Trim

Aculux® 3in Round Angle Cut Baffle Trim

By Aculux

  • Overview
  • Specifications
Angle-cut baffle trim has an aperture of 3-1/4-inches and is available in a range of colors and finishes. Compatible with a variety of Aculux® 3-1/4-inch round housings and various light sources.
Read More
Read Less
Size 3 IN
Shape Round
Light Source Halogen, LED - Dynamic, LED - Static
Product Type Trim
Environmental Listing Damp Location
Trim Style Adjustable, Baffle
Color Black, White
Mounting Type Recessed
Series 3ABAF
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET AX3 AR G4 3ABAF.pdf AX3 AR/3ABAF - 3" LED Remodel, Adjustable Angle-Cut Baffle 4/15/2021 View
    SPEC SHEET AX3 G4 3ABAF.pdf AX3/3ABAF - 3" LED New Construction, Adjustable Angle-Cut Baffle 4/15/2021 View
    SPEC SHEET AX3 WDTW 3ABAF.pdf AX3 WDTW/3ABAF - 3" LED WarmDim® and Tunable White New Construction, Angle-Cut Baffle Trim 4/5/2021 View
    SPEC SHEET IC13N_TC13N.pdf IC13N/TC13N Series - 3" PAR16/PAR20 Universal Recessed Adjustable, Downlight and Wall Wash 5/20/2021 View
    SPEC SHEET IC43N_TC43N_TC943N.pdf IC43N/TC43N/TC943N Series - 3" MR16 Universal Recessed Adjustable, Downlight and Wall Wash 10/27/2021 View
    SPEC SHEET TC43NR.pdf TC43NR Series - 3" MR16 Recessed Remodel Adjustable/Downlight/Wall Wash 5/20/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P2908.pdf Installation Instructions - CTA3/125, CTA3/163, and CTA3/200 Ceiling Thickness Adapters View
    Installation Instructions P3931.pdf Installation Instructions - AX3/AX3SQ WDTW - 3" LED New Construction, Warm Dimming/Tunable White 8/25/2021 View
    Installation Instructions P4535.pdf Installation Instructions - AX3/AX3SQ Series, 3" LED New Construction 8/25/2021 View
    Installation Instructions P4536.pdf Installation Instructions - AX3 AR Series, 3" LED Remodel 8/25/2021 View
