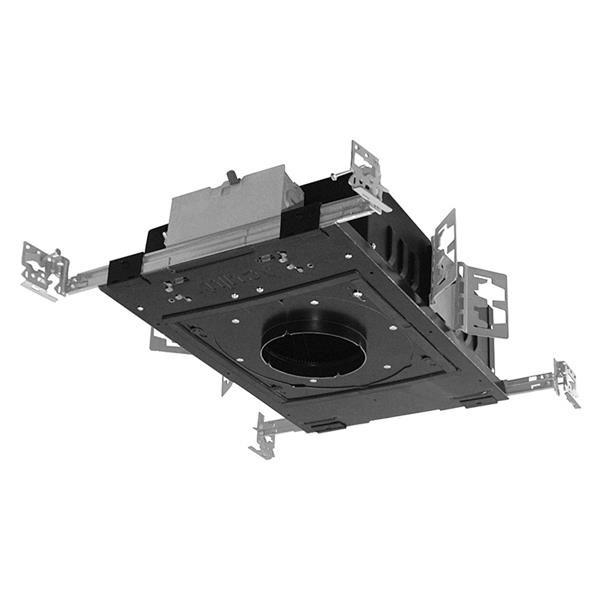

AX3 LPA Low Profile Universal Housing

Aculux® LED 3in Round New Construction Low Profile Adjustable Housing

By Aculux

    Energy Star®  CA Title 24/JA8  Buy America(n)
  • Overview
  • Specifications
Aculux® 3" Low Profile adjustable luminaire is less than 4 inches tall and is available in five lumen packages ranging from 800-2500 delivered lumens while consuming only 7-26 watts. These luminaires are perfect for applications with limited space above the ceiling. These universal recessed luminaires are compatible with downlighting, adjustable accent, or wall wash trims. They feature field interchangeable optics in 10 distributions, capable of delivering up to 25,800 CBCP. Acu-Aim™ precision geared aiming provides 370 deg. rotation and 45 deg. tilt. The optimized center beam optics result in quiet apertures while maximizing fixture efficiency.
Read More
Read Less
Size 3 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DMX, Forward Phase, Forward Phase 2W, Forward Phase 3W, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 7, 7.6
Voltage Rating 120, 277, MVOLT
Mounting Type Recessed
Series AX3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET AX3 A-LPA G4.pdf AX3 A/LPA Series, 3" LED Round New Construction Universal ADJ/DL - Comprehensive Specification Sheet 4/15/2021 View
    SPEC SHEET AX3 G4 3ABAF.pdf AX3/3ABAF - 3" LED New Construction, Adjustable Angle-Cut Baffle 4/15/2021 View
    SPEC SHEET AX3 G4 3ABV.pdf AX3/3ABV - 3" LED New Construction, Adjustable Bevel 4/15/2021 View
    SPEC SHEET AX3 G4 3AC.pdf AX3/3AC - 3" LED New Construction, Adjustable 45° Angle-Cut Reflector 4/15/2021 View
    SPEC SHEET AX3 G4 3AC20.pdf AX3/3AC20 - 3" LED New Construction, Adjustable 20° Angle-Cut Reflector 4/15/2021 View
    SPEC SHEET AX3 G4 3AOVAL.pdf AX3/3AOVAL - 3" LED New Construction, Adjustable 1 3/4” x 2 1/2” Slot Pinhole 4/15/2021 View
    SPEC SHEET AX3 G4 3APIN.pdf AX3/3APIN - 3" LED New Construction, Adjustable 1 1/4" Pinhole 4/15/2021 View
    SPEC SHEET AX3 G4 3APINLG.pdf AX3/3APINLG - 3" LED New Construction, Adjustable 1 3/4" Pinhole 4/15/2021 View
    SPEC SHEET AX3 G4 3ASLOT.pdf AX3/3ASLOT - 3" LED New Construction, Adjustable Slot-Cut Reflector 4/15/2021 View
    SPEC SHEET AX3 G4 3DBAF.pdf AX3/3DBAF - 3" LED New Construction, Downlight Baffle 4/15/2021 View
    SPEC SHEET AX3 G4 3DBV.pdf AX3/3DBV - 3" LED New Construction, Downlight Bevel 4/15/2021 View
    SPEC SHEET AX3 G4 3DH.pdf AX3/3DH - 3" LED New Construction, Downlight Hyperbolic Reflector 4/15/2021 View
    SPEC SHEET AX3 G4 3DP.pdf AX3/3DP - 3" LED New Construction, Downlight Parabolic Reflector 4/15/2021 View
    SPEC SHEET AX3 G4 3DPIN.pdf AX3/3DPIN - 3" LED New Construction, Downlight 1 1/4" Pinhole 4/15/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility ACLXLED3-DIM.pdf AX3/AX3SQ and AX4/AX4SQ Series, Dimmer Compatibility 7/10/2019 View
    Installation Instructions P2886.pdf Installation Instructions - FMA3/087 and FMA3SQ/087 New Construction Flangeless Adapters View
    Installation Instructions P2908.pdf Installation Instructions - CTA3/125, CTA3/163, and CTA3/200 Ceiling Thickness Adapters View
    Installation Instructions P3647.pdf Installation Instructions - SFM3 New Construction Flangeless Adapter for Wood, Stone, Tile Ceilings View
    Installation Instructions P4482.pdf Installation Instructions - FMA3/125 & FMA3/163 New Construction Flangeless Adapters View
    Installation Instructions P4535.pdf Installation Instructions - AX3/AX3SQ Series, 3" LED New Construction 8/25/2021 View
    Installation Instructions P6160.pdf Installation Instructions - DMXR Driver View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Aculux 3-inch Precision Recessed LED Brochure_0318.pdf Aculux 3 inch Generation 4 Brochure View
