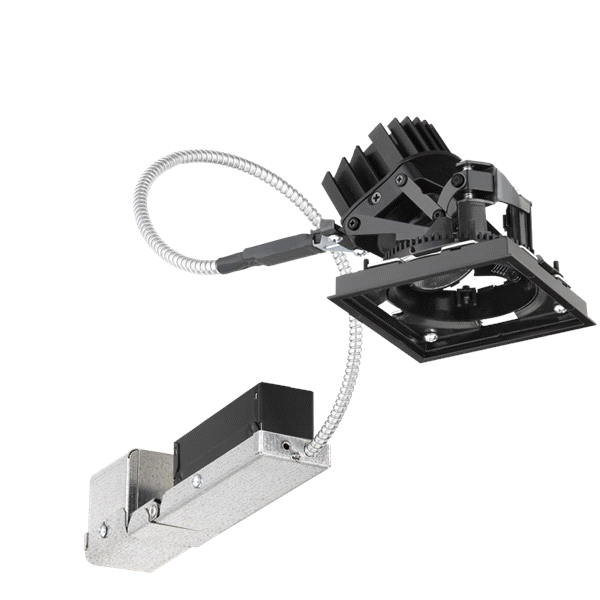

AX2SQ AR Remodel Universal Housing

Aculux® LED 2in Square Remodel Adjustable Housing

Aculux® 2-inch remodel adjustable, downlight and wall wash luminaire is discreet and aesthetically stunning, delivering up to 1,500 lumens of high precision downlighting, wall washing, or adjustable accent lighting. Its state-of-the-art LED technology offers superb color consistency within 2 step MacAdam ellipse. The extremely efficient optical system providing 11 beam options, coupled with precision geared aiming provides superior beam control, putting the right amount of light in precisely the right places.

Read Less

Size	2 IN
Shape	Square
Light Source	LED - Static
Lumens	800 LM, 1200 LM, 1500 LM
CCT / LED Color	2700 K, 3000 K, 3500 K, 4000 K
CRI	80, 90
Product Type	Housing
Compliance Listing	BAA, ENERGY STAR®
Environmental Listing	Damp Location, Non-IC, Wet Location
Regulatory Listing	cUL, UL
Dimming Protocol	0-10V, Forward Phase, Reverse Phase
Fixture Wattage	10, 14.3, 14.7, 16.5, 17.3, 9.9
Voltage Rating	120, MVOLT
Trim Style	Lensed, Open, Pinhole, Scoop, Single Wallwash, Adjustable, Angle-Cut, Bevel
Color	Black, Clear, Wheat, White
Mounting Type	Recessed
Series	AX2SQ

Read More Read Less

Spec Sheets

Document Type	Document Title	Description	Updated	View	Download	Email
SPEC SHEET	AX2SQ AR G2 2SQA.pdf	Aculux AX2SQ AR Series, 2SQA Angle-Cut Reflector	4/19/2022	View	Download	Email
SPEC SHEET	AX2SQ AR G2 2SQABV.pdf	Aculux AX2SQ AR Series, 2SQABV Adjustable Bevel	4/19/2022	View	Download	Email
SPEC SHEET	AX2SQ AR G2 2SQAPIN.pdf	Aculux AX2SQ AR Series, 2SQAPIN Adjustable Pinhole	4/19/2022	View	Download	Email
SPEC SHEET	AX2SQ AR G2 2SQASC.pdf	Aculux AX2SQ AR Series, 2SQASC Adjustable Scoop	4/19/2022	View	Download	Email
SPEC SHEET	AX2SQ AR G2 2SQWW.pdf	Aculux AX2SQ AR Series, 2SQWW Wall Wash	4/19/2022	View	Download	Email
SPEC SHEET	AX2SQ AR G2.pdf	Aculux AX2SQ AR Series, 2" LED Square Remodel Universal ADJ/DL/WW -Complete Specification Sheet	4/19/2022	View	Download	Email
SPEC SHEET	AX2SQ DR G2 2SQD.pdf	Aculux AX2SQ DR / AX2SQ AR Series, 2SQD Downlight Reflector	4/19/2022	View	Download	Email
SPEC SHEET	AX2SQ DR G2 2SQDBV.pdf	Aculux AX2SQ DR / AX2SQ AR Series, 2SQDBV Downlight Bevel	4/5/2021	View	Download	Email
SPEC SHEET	AX2SQ DR G2 2SQDPIN.pdf	Aculux AX2SQ DR / AX2SQ AR Series, 2SQDPIN Downlight Pinhole	4/5/2021	View	Download	Email

Create Submittal Spec Sheet

Photometry & Revit (BIM)

Search within... Use %(percent) to separate search terms.

Clear Filters

{{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

View Form Sizing

Description	Report	Design Tools	.ies	BIM

{{photometryItem.Catalog}}	Report	{{tool.Title}}	.ies	BIM

Prev
{{page}}
Next

CLICK HERE to start your request for a BIM Model or IES file.

Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

Document Type	Document Title	Description	Updated	View	Download	Email
Dimming Compatibility	ACLXLED2-DIM.pdf	AX2 and AX2SQ Series, Dimmer Compatibility	10/31/2018	View	Download	Email
Installation Instructions	P3705.pdf	AX2 and AX2SQ Series FMA2R and FMA2SQR Flangeless Adapters for Remodel Fixtures	6/6/2018	View	Download	Email
Installation Instructions	P4503.pdf	AX2 and AX2SQ Series Type Non-IC Remodel Downlight Fixtures	10/28/2021	View	Download	Email
