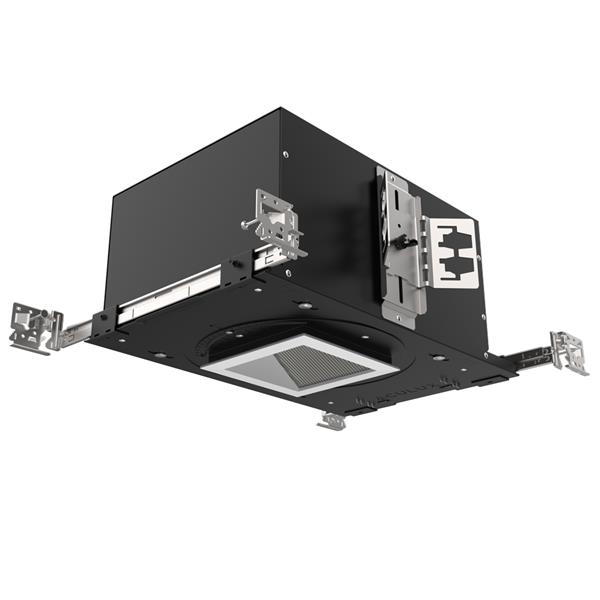

Aculux® LED 4in Square New Construction Wall Wash Housing

Aculux ® 4-inch LED fixed wall wash luminaires is your solution when seeking market leading performance. This wall wash luminaire delivers high levels of illumination on vertical surfaces while also achieving exceptional uniformity ceiling to floor. This low glare aperture, available in both ICAT and non-ICAT configurations, has 45 degree visual cutoff and has no room side glare or flash

Read Less

Size	4 IN
Shape	Square
Light Source	LED - Static
Lumens	1200 LM, 1700 LM, 2200 LM, 2700 LM, 3200 LM
CCT / LED Color	2700 K, 3000 K, 3500 K, 4000 K
CRI	80, 90
Product Type	Housing
Compliance Listing	BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
Environmental Listing	Damp Location, Wet Location
Regulatory Listing	cUL, UL
Dimming Protocol	0-10V, Forward Phase, Forward Phase 2W, Reverse Phase
Fixture Wattage	12, 12.9, 15.6, 17.2, 22.5, 25.1, 29.7, 33.2, 35.6, 36.2
Voltage Rating	120, 277, MVOLT
Trim Style	Adjustable, Angle-Cut, Bevel, Lensed, Open
Color	Black, Clear, Wheat, White
Mounting Type	Recessed
Series	AX4SQ

Read More Read Less
