INIT3 ADJ Housing

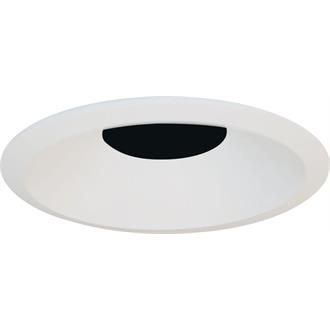

Initia™ LED 3in Round New Construction Adjustable Housing

By Aculux

    WarmDimEnergy Star®CA Title 24/JA8Buy America(n)
  • Overview
  • Specifications
Aculux® Initia 3-inch LED is an affordable precision recessed luminaire offering elegance and performance in 3 lumen packages (ranging from 400-1500 delivered lumens). Available in both ICAT and non-ICAT configurations, this recessed adjustable features field-interchangeable optics available in 4 distributions (18°- 50°) and 359° rotation, 35° tilt hot aiming. Aculux Initia adjustable housing is compatible with Initia adjustable trims which provide excellent below ceiling aesthetics that coordinate with the AX3 family.
Read More
Read Less
Size 3 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Lumens 400 LM, 800 LM, 1200 LM, 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90
Product Type Downlight
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Forward Phase 2W, Reverse Phase
Fixture Wattage 12, 16, 5, 8
Voltage Rating 120, 277, MVOLT
Trim Style Adjustable, Angle-Cut, Bevel, Lensed, Pinhole
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series INIT3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET INIT3 ADJ.pdf Aculux Initia™ LED 3in Round Adjustable Accent 6/20/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P4807.pdf INIT3 and INIT3SQ Series Adjustable, Downlight & Wall Wash New Construction Housing 5/4/2022 View
    Installation Instructions P4809.pdf INIT3 and INIT3SQ Series Flangeless Adapter for Gypsum Ceiling Thickness .5" to 1.5" 3/11/2020 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures ACX_9976.02_Aculux Initia 3in Brochure_0120_web.pdf Aculux Initia 3" Brochure 10/29/2020 View
